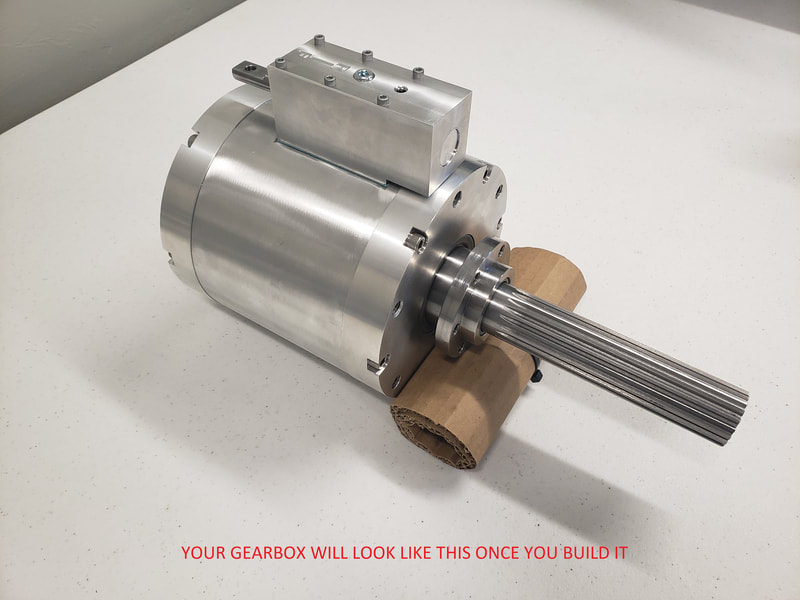

REVERSE GEARBOX BUILDER'S KIT
Fleming Engineering is currently offering our popular reverse gearbox as a Builder's Kit. The kit currently includes the items in the first picture above: (1) input shaft/sun gear, (1) ring gear, (3) planet gears, (1) output shaft, (1) shift fork, and (2) retaining rings. The remaining items needed to build the gearbox will need to purchased or built by the buyer.
This kit is aimed at a buyer that owns, or has access to, a well-equipped machine shop and the experience to make quality parts. Email for a complete drawing set, including 2D PDFs, 3D models, and PDF instructions. See link below for the complete instructions, which gives a list of parts included with the kit along with what you will need to provide.
This kit is aimed at a buyer that owns, or has access to, a well-equipped machine shop and the experience to make quality parts. Email for a complete drawing set, including 2D PDFs, 3D models, and PDF instructions. See link below for the complete instructions, which gives a list of parts included with the kit along with what you will need to provide.
| gearbox_kit_instructions_rev._2.pdf |
Gearbox Specs:
Dimensions (approx) 13.0" L x 6.0" W x 7.4" H (BUILT)
Weight: 23 Lbs (BUILT)
Forward Ratio: 1:1
Reverse Ratio: 2.14:1
Input Drive: Flat Flange (6) 5/16-24 threaded holes on a 2.50" BC
Output Drive: 1.25" - 19 Spline
Torque Limit: 500 ft-lbs
RPM Limit: 10,000 RPM (prolonged running at higher than 7000 RPMs will prematurely wear out the input shaft seal)
PRICE: $400 USD PLUS SHIPPING ($20 USPS FLAT RATE INSURED WITHIN THE US, USPS PRIORITY INT'L INSURED OUTSIDE OF US) International shipping to most countries will be about $85 with insurance.

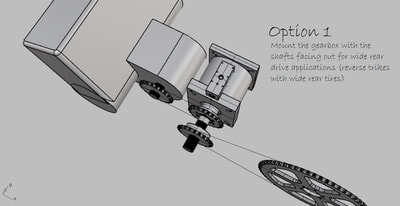

SPLINED HUBS: I have splined hubs in stock. Made in the US from 1045 steel, the same as most available sprockets. You can use the same flat sprocket for input and output. Just weld a sprocket onto the stepped part of the hub. $75, free shipping when purchased with a kit or after.
For those looking to add reverse to a rock crawler or legend car and use our gearbox, good news, Spicer makes a u-joint yoke that fits the output shaft splines. Spicer P/N 2-4-6341. Available at a few different driveline shops.
We are looking to work with a few universities and supply kits to their Baja SAE teams. If you are part of a Baja SAE team and would like to have reverse on your car, please contact me and we will offer discounts to schools. Our housing design is very modular and as part of your team project, you have free license to reconfigure the housing to suit your application. We just ask that the gear information remain private. We look forward to working with you.
If you're interested in purchasing a gearbox kit, please contact me with your shipping address and I'll create a Paypal Invoice for you to pay. You do not need to have a Paypal account to pay the invoice. I can also give bulk order discounts if you have a need for multiple gearbox kits.
NOTE: It is highly recommended to use a push-pull cable for shifting between forward and reverse and add detents to the shifter arm. This helps ensure the gearbox is securely in forward or reverse. Otherwise, damage may occur.
DISCLAIMER: I make every effort to explain what is included in the kit and what will be involved by the buyer after purchase. I openly answer any questions that are asked in regard to the difficulty of manufacturing the parts. Because of this, and the proprietary parts included, I cannot offer any refunds after a kit has been shipped.
INLINE GEARBOXES: If you're looking for a gearbox for a shaft-drive engine, unfortunately my gearbox won't work unless it's a very special application. There are two companies in the UK that make inline gearboxes that would be a better starting point. I don't have experience with either, but they look like quality pieces.
Quaife: https://shop.quaife.co.uk/quaife-reversing-box
Nova Racing: https://www.novaracing.co.uk/ProductHondaReversingGearbox.html
Quaife: https://shop.quaife.co.uk/quaife-reversing-box
Nova Racing: https://www.novaracing.co.uk/ProductHondaReversingGearbox.html
